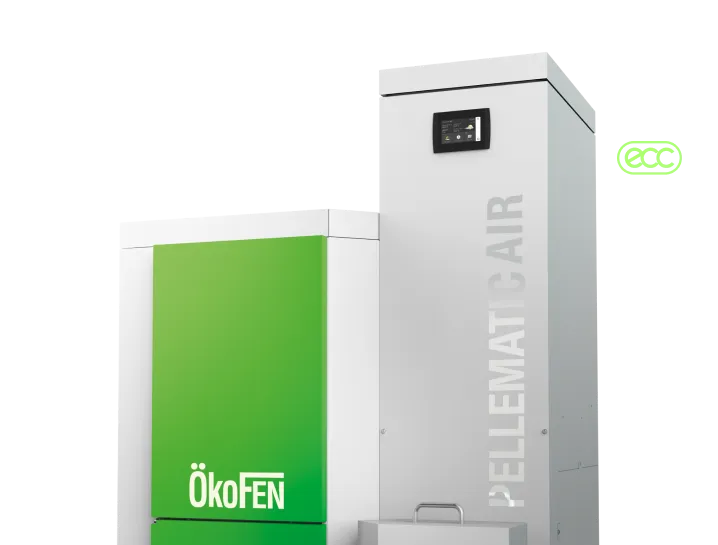

Pellet boiler Pellematic Air

The pellet hot-air heating system – more than just hot air!

If no water heating circuit is available, ÖkoFEN can still supply the appropriate heating system: the innovative Pellematic Air hot-air heating system.

With output of 30 kW, it is ideal for the simple heating of greenhouses, workshops, warehouses, tents and stables or for drying buildings. Four fans ensure quiet operation with low power consumption.
Thanks to proven Pellematic technology, the Pellematic Air scores highly with the customary clean and efficient combustion and achieves efficiency levels of up to 93.8%*.



With 30 kW output
With 30 kW output
Efficient and economical
Efficient and economical
Concentrated competence on the spot – with no costly installation
Concentrated competence on the spot – with no costly installation



Heat simply with greatest convenience but no heating system installation

The Pellematic Air pellet hot-air heating system ensures constant, reliable warmth in every building – without any costly installation work.

It is operated from the intuitive display on the Pellematic Air or conveniently by app from anywhere.

Temperature-controlled regulation and fully automatic pellet feed from a storage tank ensure the highest levels of heating comfort. The hot-air heating system is also available with a manual filling option and with the comfort ash box.

Maxi side view

The benefits of the Pellematic Air at a glance

Request free catalogue
Contact your ÖkoFEN Partner

The technical refinements of the Pellematic Air

The innovative pellet hot-air heating system: environment friendly, efficient and economical.

  • Innovative fan unit
    Four fans ensure quiet operation with low power consumption (250 W).
  • Efficient Combustion Control technology
    comprising a multi-segment burner plate, negative draft control and combustion chamber sensor ensures low emissions, constantly high efficiency and optimum adaptation of heating output to the building's requirements.
  • Multi-segment burner plate for greater functional reliability
    The individual segments ensure low spare part costs and reduce the amount of cleaning work thanks to the oscillating segments.
  • Pelletronic Touch programming unit for intuitive operation
    with touchscreen display and self-explanatory graphics.
Vacuum turbine

Vacuum turbine

for filling the hopper automatically
Convenient, straightforward operation

Convenient, straightforward operation

by Pelletronic Touch (also by app)
Hopper

Hopper

for approx. 55 kg of pellets
Combustion chamber sensor for automatic fuel detection

Combustion chamber sensor for automatic fuel detection

Fully automatic heat exchanger cleaning

Fully automatic heat exchanger cleaning

4 highly efficient fans

4 highly efficient fans

Volumetric flow rate up to 2400 m3/h
Electronic ignition with glow rod

Electronic ignition with glow rod

250 W output only
Multi-segment burner plate

Multi-segment burner plate

Negative draft control

Negative draft control

Comfort ash box

Comfort ash box

Dust-free ash removal with automatic notification when the box is full (available as an option)
